Genz Benz Black Pearl 30 replacement transformer.

Genz Benz Black Pearl 30 replacement mains transformer.

We have been recently asked by a very good customer of ours to take a look at his much cherished Genz Benz Black Pearl 30 – 112. All he said was ‘it’s gone up in smoke’, he wasn’t wrong. The mains transformer had gone short circuit.

To expedite the repair we decided to reverse engineer a replacement unit. Below you will see the process involved with re-manufacturing the mains transformer.

Step 1

Genz Benz Black Pearl 30 Transformer

This is the original untouched transformer.

Step 2

Genz Benz Black Pearl 30 - Step 2

Remove covers

Step 3

Genz Benz Black Pearl 30 - Step 3

Remove laminations.

Step 4

Genz Benz Black Pearl 30 - Step 4

Reveal primary terminations.

Step 5

Genz Benz Black Pearl 30 - Step 5

Reveal secondary terminations.

Step 6

Genz Benz Black Pearl 30 - Step 6

Lead start centre tap and count windings.

Step 7

Genz Benz Black Pearl 30 - Step 7

Do the same with the secondary windings.

Step 8

Genz Benz Black Pearl 30 - Step 8

Start new primary winding including 3A Fuse.

Step 9

Genz Benz Black Pearl 30 - Step 9

First 115v winding finished.

Step 10

Genz Benz Black Pearl 30 - Step 10

Second 115v winding finished.

Step 11

Genz Benz Black Pearl 30 - Step 11

First HV secondary winding finished.

Step 12

Genz Benz Black Pearl 30 - Step 12

All other secondary windings finished.

Step 13

Genz Benz Black Pearl 30 - Step 13

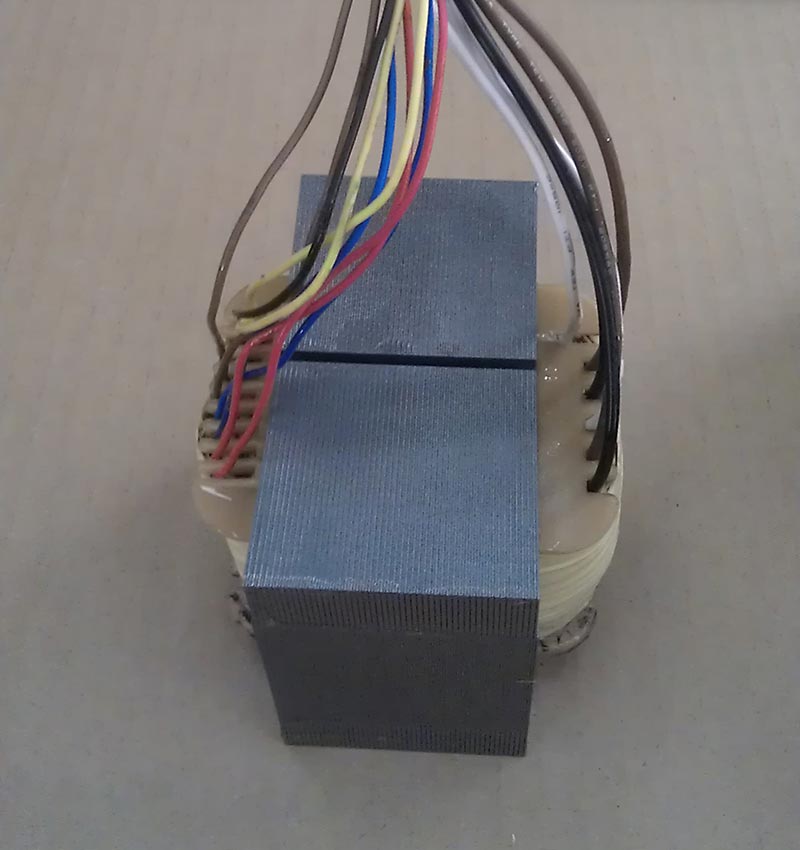

With new laminations and varnished.

Step 14

Genz Benz Black Pearl 30 - Step 14

Ready to go back into the unit.

Needless to say he was extremely happy with the final result.

Please note: We are able to reverse engineer almost all types of transformers, don’t hesitate to contact us for further information.
